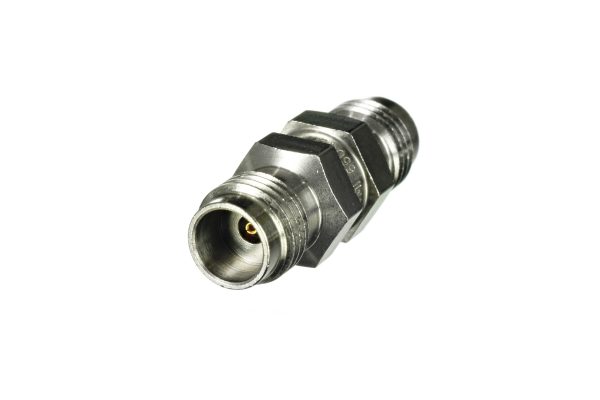

1832-00SF, Adapter 1.85mm-f/1.85mm-f

S10401253
Not in stock
Product question
Buy

What would you like to know about 1832-00SF, Adapter 1.85mm-f/1.85mm-f?

Send

Description

In Series 67 GHz 1.85mm (V)

Model1832-00SFSeries

1.85mm (V)

Gender

Female – Female

Frequency (GHz)

67, 50, 40, 36, 33, 27, 18

Mounting

Inline

Features

•Mode Free Through 67.0 GHz

•Low VSWR

•DC to 18.0 GHz……1.10:1 max

•18.0 to 40.0 GHz….1.15:1 max

•40.0 to 50.0 GHz….1.18:1 max

•50.0 to 67.0 GHz….1.25:1 max

•Low Insertion Loss

•Leakage: <-100dB

•Temperature Rating -55ºC to + 165ºC

Interface

•Per IEC-61169-32

Construction

•Housing: Stainless Steel, Passivated

•Contact: Beryllium Copper (BeCu), Gold Plated Per MIL-G-45204

•Center Contact Capture: Ultem 1000 Per ASTM D5205 and KEL-F Per ASTM D1430
