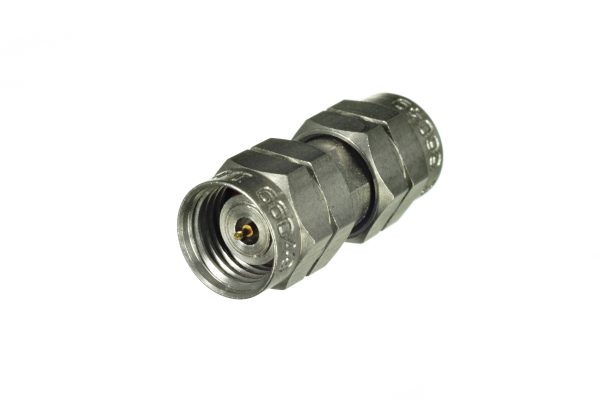

In Series 67 GHz 1.85mm (V)
Model1831-00SFSeries
1.85mm (V)
Gender
Male – Male
Frequency (GHz)
67, 50, 40, 36, 33, 27, 18
Mounting
Inline
Features
•Mode Free Through 67.0 GHz
•Low VSWR
•DC to 18.0 GHz……1.10:1 max
•18.0 to 40.0 GHz….1.15:1 max
•40.0 to 50.0 GHz….1.18:1 max
•50.0 to 67.0 GHz….1.25:1 max
•Low Insertion Loss
•Leakage: <-100dB
•Temperature Rating -55ºC to + 165ºC
Interface
•Per IEC-61169-32
Construction
•Housing: Stainless Steel, Passivated
•Contact: Beryllium Copper (BeCu), Gold Plated Per MIL-G-45204
•Center Contact Capture: Ultem 1000 Per ASTM D5205 and KEL-F Per ASTM D1430
