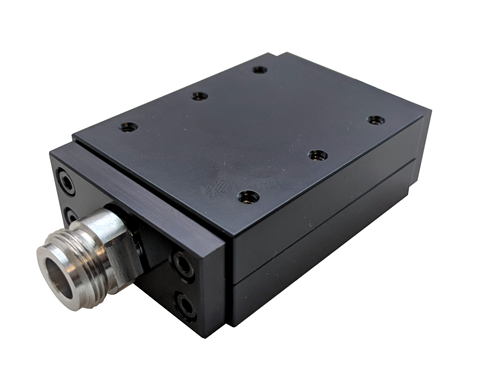

Low Profile Housing
Conductive Cooling
Holes for mounting
Dimensions & Weight: 0.14 kg; Length: 88.00 mm; Width: 48.50 mm; Height: 23.00 mm
Connection & Mounting: Type N, TNC or SMA, stainless steel M/F connecters per MIL-STD-348A, interface dimensions mate non-destructively with MIL-PRF-39012.
Construction: Black aluminum alloy body with passivated stainless steel connectors. Gold plated beryllium copper female contact, stainless steel male contact. RoHs Compliant
Calibration: VSWR performed across frequency range. Calibration test data available at additional cost.
Options: Low Intermodulation
Average Power Description: Maximum rated average power with case temperature held to a maximum of 100°C.
Average Power: 100
Peak Power: 10 kW peak (5 μsec pulse width, 0.5% duty cycle)
Frequency Range: dc to 3.0
Nominal Impedance: 50
Temperature Range: -55°C to +100°C
VSWR: 1.20
