Designed to meet with MIL-DTL-3933 environmental specifications.
Weight: 0.10 kg
Dimensions & Weight:
Attenuation 1 to 30 dB 31 to 60 dB
Length (mm) 74.4 84.6

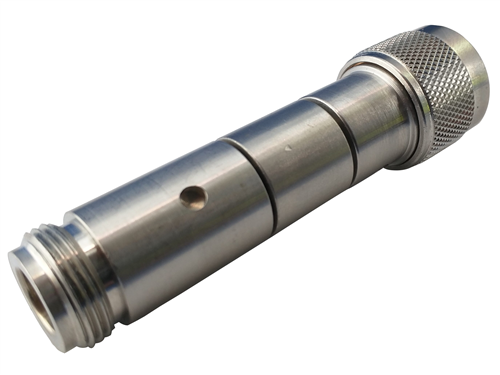

Connection & Mounting: Type N stainless steel male and female connectors to mate non-destructively with connectors per MIL-PRF-39012 and MIL-STD-348A.
Construction: Stainless steel barrels with passivated stainless steel connectors. RoHs Compliant.
Calibration: Insertion Loss and VSWR performed across frequency range. Calibration test data available at additional cost.
Average Power: 2
Peak Power: 1 kW peak (5 μsec pulse width, 0.1% duty cycle)
Directionality: Bidirectional
Frequency Range: dc to 3.0
Attenuation Range: 1 to 50
Attenuation Accuracy:
Attenuation Range 0 to 12 dB 13 to 20 dB 21 to 40 dB 41 to 60 dB
Attenuation Accuracy (+/- dB) 0.50 0.70 1.0 1.5
Nominal Impedance: 50
Temperature Range: -30° to +70°C
VSWR:
Frequency Range (GHz) 1.0 3.0
VSWR (max) 1.15 1.20
